Samsung MP20S Main Control Processor (OS-720BMPS/XAR)

  • Like New: $395.88
Availability: In Stock

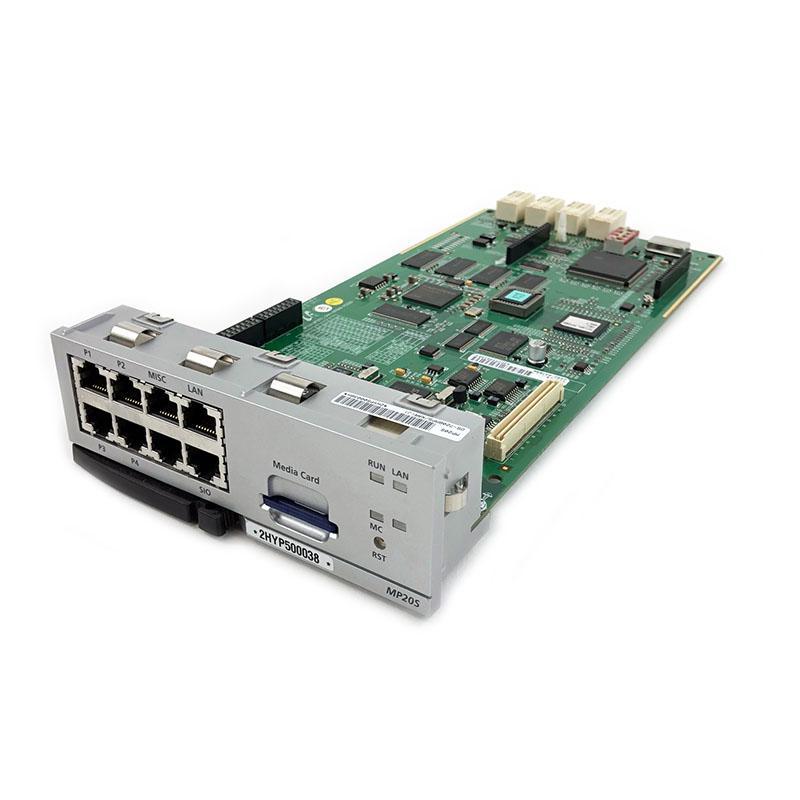

Samsung OfficeServ 7200 MP20S Main Control Processor (OS-720BMPS/XAR)

The Samsung MP20S is the main processor controlling system operation on the OfficeServ 7200. The MP20S always goes in slot 0 of the cabinet. It MP20S provides a LAN connection, a MISC port (external page, MOH/BGM, loud/common bell), an SIO port (Samsung Maintenance Only), an internal modem slot, and a media card (SD) slot which can accommodate a SD card containing the system software and storage space (52 hours) of voicemail messages and prompts. The MP20S also includes embedded Automated Attendant,Voicemail, and MGI channels (license key required).

The MP20S has a connector for mounting a 4SWM card.When the 4SWM card is installed on the processor the LAN connection is provided on the front panel of the MP20S. Additionally, it also has a connector for mounting the optional modem board.This modem board can be used for remote access to system administration at installation that do not have a LAN connection. This is the same modem card used in the other OfficeServ systems. If the 4SWM is installed the switch and LAN is automatically connected by way of the backplane. In addition it may be used as a backup for LAN connectivity.


  • Fits into the dedicated Slot 0 on the OfficeServ 7200 cabinet
  • Embedded voicemail and auto-attendant
  • 6 MGI channels which can be unlocked via licenses (not included)
  • Provides LAN connection
  • Misc. Port for external page, MOH/BGM, loud/common bell, etc.
  • Includes Atlas 1-Year Warranty with Extended Warranty options available!
