Samsung Control Equipment

Samsung TEPRIa Digital Line Card (KP-OSDBTE1/XAR)

  • Like New: $233.88
Availability: In Stock
$233.88

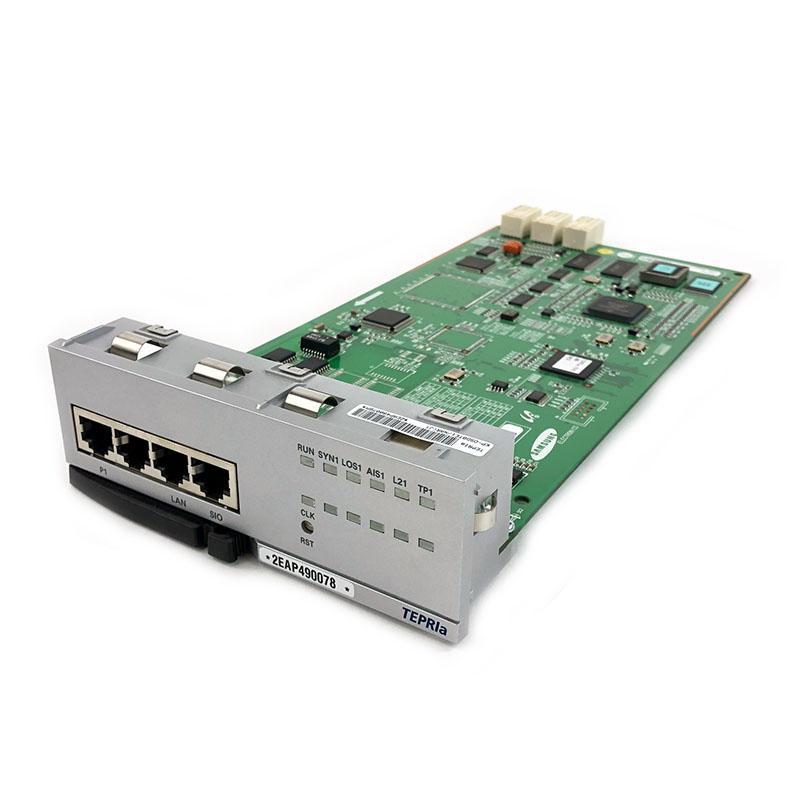

Samsung OfficeServ 7200 TEPRIa Digital Line Card (KP-OSDBTE1/XAR)

When programmed as a T1 this card provides up to 24 trunk circuits in any combination of Loop start lines, DID (Direct Inward Dialing), Ground start lines, E & M tie lines or two way DID calling. When the card is programmed as a PRI it will provide 23 bearer channels and 1 data channel (23B+D). This card can be installed in slots 3, 4, and 5 of main cabinet and slot 3 in the expansion cabinet. This card is also used for networking to other systems (QSig/PRI networking). A maximum of 4 TEPRI/TEPRIa boards can be installed per system.


Features

  • Fits into the universal Slots 3, 4, or 5 on the OfficeServ 7200 cabinet
  • will provide 23 bearer channels and 1 data channel (23B+D) when programmed as a PRI
  • Includes Atlas 1-Year Warranty with Extended Warranty options available!
