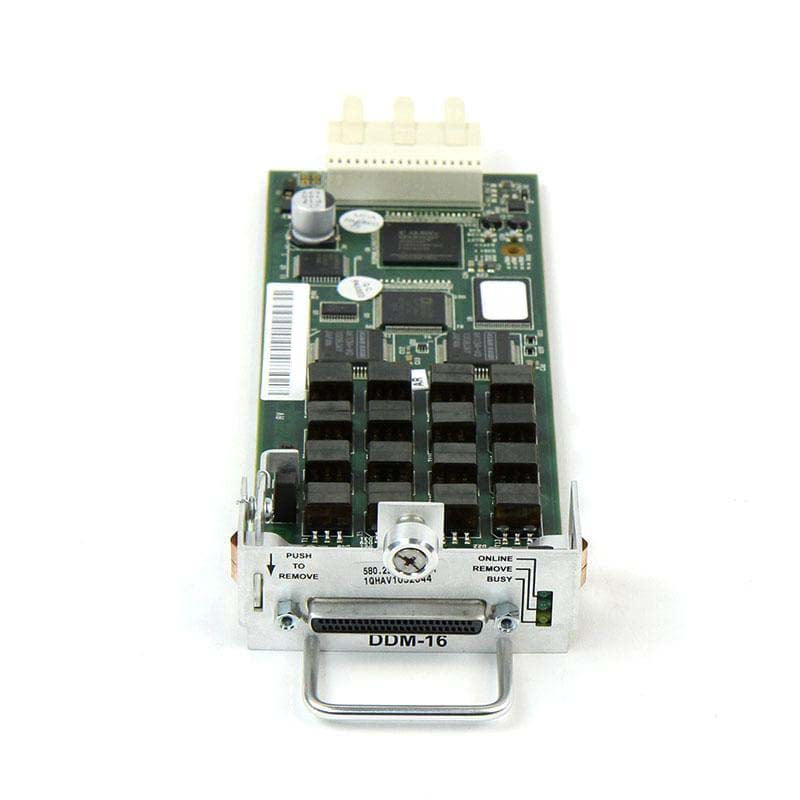

Mitel Inter-Tel 5000 DDM-16 Digital Desktop Module (580.2201)
The DDM-16 Digital Desktop Module will provide users 16 additional digital station ports on their Mitel 5000 HX or Mitel MiVoice Office 250 system.
NOTE: DDM-16 3M to AMP Cable NOT INCLUDED
Features
- Adds 16 digital station ports
- LEDs for online, remove and busy status
- Installs in HX chassis (580.1003) expansion bay
- Requires Class E licenses for digital station ports to function
- Requires (813.1910) DDM-16 termination cable (sold separately)
- Module release lever for safely removing the module from the bay
- Up to (3) DDM modules can be installed in the Mitel 5000 HX chassis only
- If more than 48 digital stations are needed, a maximum of (4) DEI units can be connected to the system each of which supports up to (3) DDM-16 modules
Compatibility
- Compatible with the Mitel 5000 HX and Mitel MiVoice Office 250 systems
