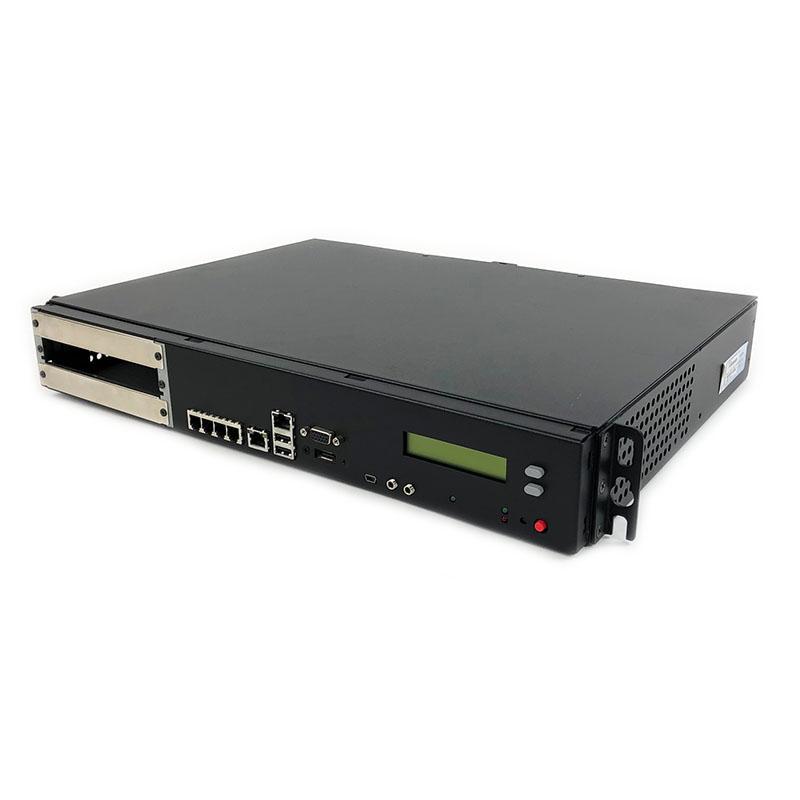

Vertical Wave IP 500 Cabinet (VW5-500-2A-SSD)

  • Like New: Contact Us
Contact Us

Vertical Wave IP 500 Cabinet (VW5-500-2A-SSD)

Vertical Wave IP appliances feature the latest solid-state drive (SSD) technology and scale easily to provide exceptional expansion capabilities for single or multisite organizations, whether you have ten or thousands of users. Your investment is protected as your company grows with robust voice gateway capabilities that let you migrate to next-generation IP communications services on your own timeline. The Wave IP 500 supports the latest in SIP trunking services for maximum flexibility and cost savings. It also supports traditional voice trunk interfaces, including analog trunks, T1 and PRI-ISDN without any external devices to manage.


  • ViewPoint UC Desktop Call Management Interface
  • ViewPoint Mobile Application with SIP Softphone for Smartphones & Tablets
  • Real-time Presence & Status
  • Secure Instant Messaging
  • Meet Me Conference Rooms
  • In- & Outbound IVR Applications
  • Call Recording & Logging
  • Call Reporting
  • Visual Voice Mail
  • Integrated Softphone
  • VPN & NAT Traversal Support for Teleworkers
  • Microsoft Exchange Integration
  • Wave Client Application Programming Interface
  • Automated Cloudbased Vertical Updates
  • Includes Atlas 1-Year Warranty with Extended Warranty options available!


  • 2 Analog Stations + 2 Loop Start Trunks (RJ11)
  • 2 Active USB Ports
  • 3 Module Slots for expansion
  • 1 Gigabit Ethernet Port (10/100/1000)
  • 1 Audio In port, 1 PA Out port
  • 1 eSATA Port
  • Maximum of 50 users of all types on a single system
  • Supports up to 50 SIP handsets, 48 Digital phones (require power supply), 26 Analog handsets, and 50 Mobile users.
  • 1,000 Mailboxes
  • 32 total voice channels:
    • T1 w/DNI (Can support PRI or T1): 1 Module/24 Channels
    • E1 w/DNI 1 Module/30 Voice Channels
    • BRI 3 Modules/8 Voice Channels Each
    • Analog Loop Start 3 Modules/8 Voice Trunks Each (Plus 2 built-in ports)
    • Analog DID Trunks 3 Modules/8 Voice Trunks Each
    • SIP (VoIP) 25 Trunks/Active External Calls


  • Digital Telephones
    • Edge 700 Family: VW-E700-8, VW-E700-24
    • Edge 100 Family: VW-E100-12, VW-E100-24
    • Comdial Family: 8012S SCS, 8024S SCS, 8312SJ SCS, 8324SJ SCS
    • Vodavi Family: 3011-71, 3012-71, 3015-71, 3017-71
    • 3rd Party: Spectralink via Comdial digital integration
    • Digital Cordless: Vertical DECT
  • IP Telephones
    • Edge 9800 Series: VIP-9820-00, VIP-9830-00, VIP-9840C-00, VIP-9871-00
    • 3rd-Party SIP Phones: Polycom VVX Series, Polycom SoundStation IP 5000/6000/7000, Spectralink 7000/8000 Series, Spectralink Pivot Wireless Series
    • Softphone: Vertical ViewPoint & ViewPoint Mobile Integrated Softphones
    • Mobile Platforms: iOS Devices Running Version 7.0 and Up, Android Devices Running Version 4.0 and Up
