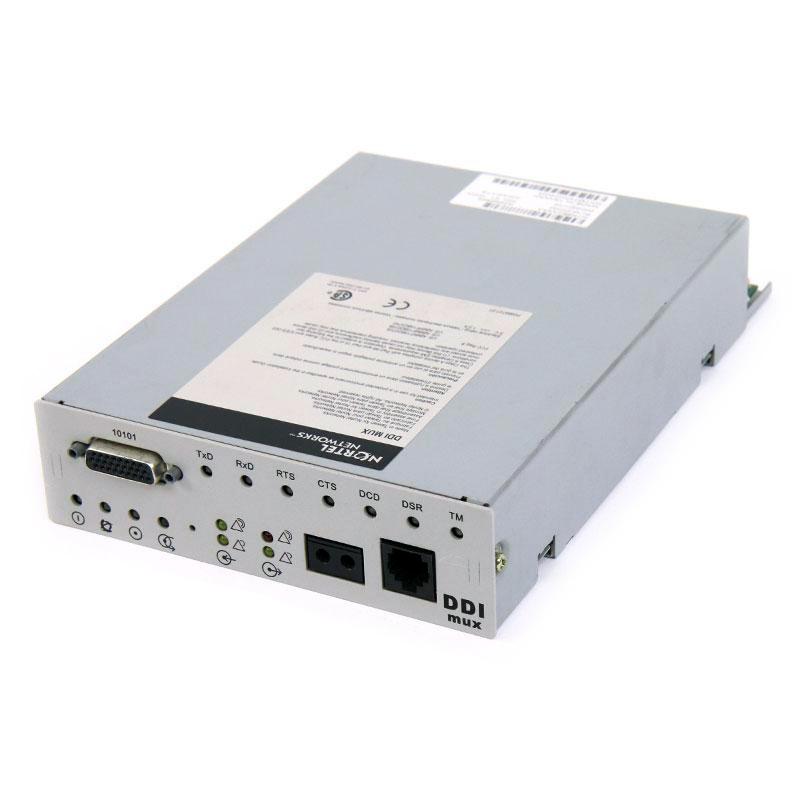

Nortel BCM DDI Mux Digital Drop and Insert Module (NT5B52AAAA)

Description of the Nortel BCM-DDIM Digital Drop & Insert MUX Media Bay Module (NT5B52AAAA)

The Nortel BCM-DDIM Digital Drop and Insert MUX is a media bay module that will provide users with the use to split date and voice channels with their existing BCM 200 and 400.

Features

• Enables BCM systems to share its connection to a universal T1 network with a local area network (LAN)
  to provide a combination of voice and data channels
• Provides functionality of DI (T1 digital lines only)
• Splits the incoming T1 line so that some of the lines are used for voice traffic
  and some of the lines are used for data traffic
• Provides either the channel service unit (CSU) or data service unit (DSU) functionality
  to support connections to data terminal equipment (DTE), such as a router or a bridge
• Provides end-to-end transparent bit service
• Supports loopbacks between the BCM system and the internal BCM components
  and between the BCM system and digital terminal equipment

Compatibility

• Compatible with the BCM 200/400 Main Unit, BCM400 Expansion Unit and BCM50 Expansion Unit
