Nortel BCM DSM16 Digital Station 16 Module (NT7B08AA)

  • Like New: $64.88
Availability: In Stock

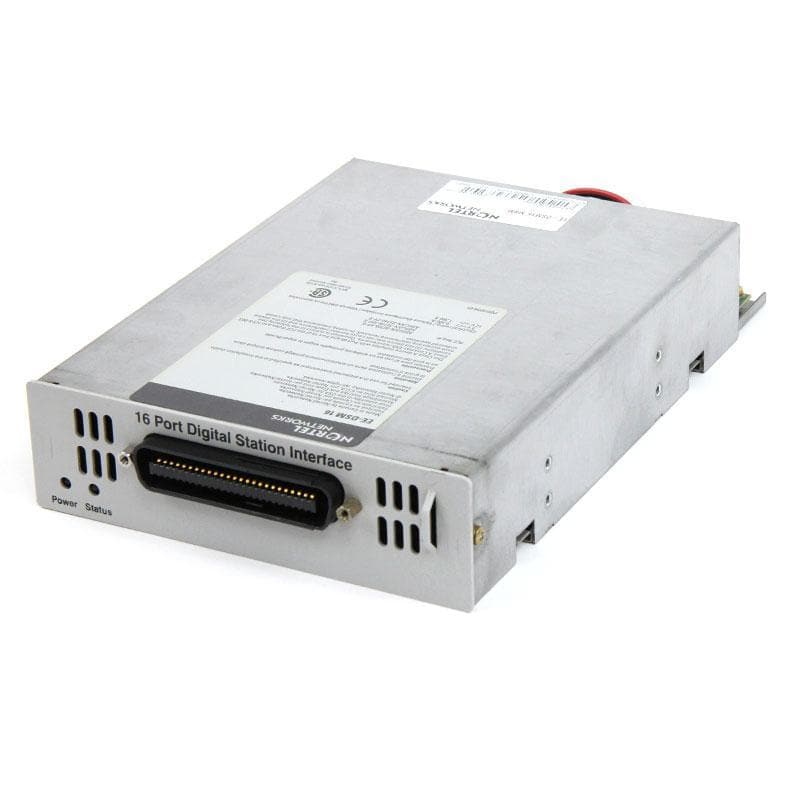

Nortel BCM EE-DSM 16 Port Digital Station Interface (NT7B08AAAD)

The Nortel BCM EE-DSM16 Digital Station is a 16 media bay module that will provide users up to 16 stations/ports to connect to their BCM 200 or BCM 400 through one RJ-21 Connector.


  • Supports 16 digital telephones through on RJ-21 connector
  • Double density switch must be set to enable the DSM which will carry 16 extensions over a half DS30 bus
  • If required, install a second DSM16 and set the double density switch
    to occupy the second half of the DS30 bus to expand the number of extensions to 32


  • Compatible with the BCM 200/400 Main Unit, BCM400 Expansion Unit,
    BCM450 Main Unit, BCM450 Expansion Unit and BCM50 Expansion Unit
