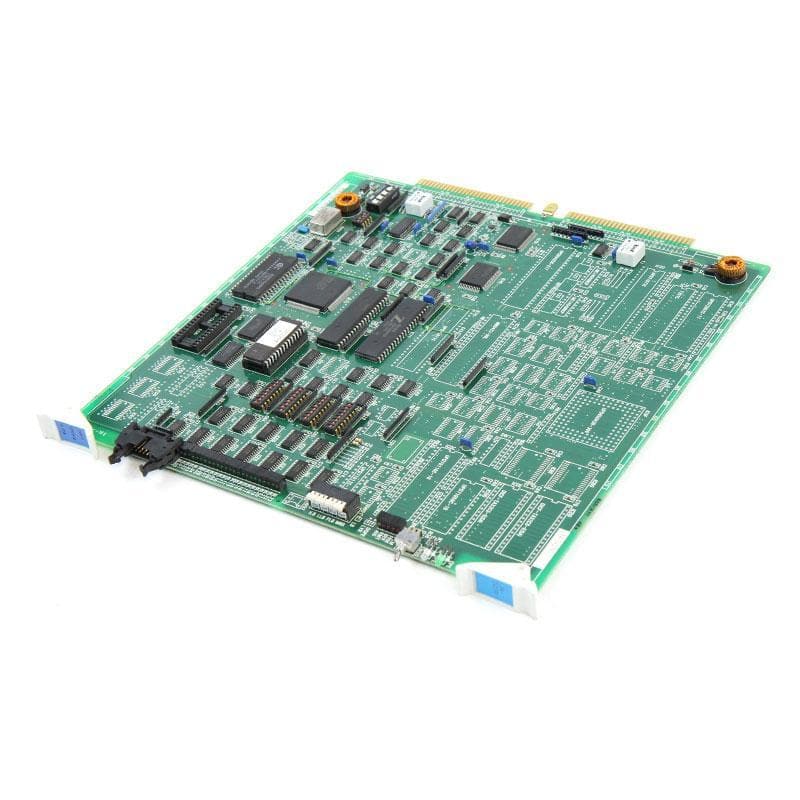

NEC NEAX 2400 PA-24DTR DTI Card (200126)
  • Like New: $58.99
Availability: In Stock
$58.99
Wishlist Compare

NEC NEAX 2400 PA-24DTR DTI Card (200126)

The NEC NEAX 2400 PA-24DTR DTI Card provides an interface between 24 digital trunks and the system at 1.544 Mbit/s. Additionally, when connected to an additional CCH or DCH circuit card, the PA-24-DTR 24DTI card can be used as an interface for a Common Channel Interoffice Signaling (CCIS) or an ISDN network. A built-in resonance circuit can be used to extract clock signals when the PBX functions as a PLO-secondary switch. To obtain appropriate speech level, this card is equipped with a mask ROM with typical PAD patterns, which are selected by key settings and MAT programming.


Features:

  • Provides interface between 24 digital trunks and the system
  • Can provide interface for a CCIS or ISDN network
  • Can extract clock signals when PBX functions as PLO-secondary switch
  • Comes equipped with mask ROM with typical PAD patterns
  • One year warranty included, with extended warranties available!
