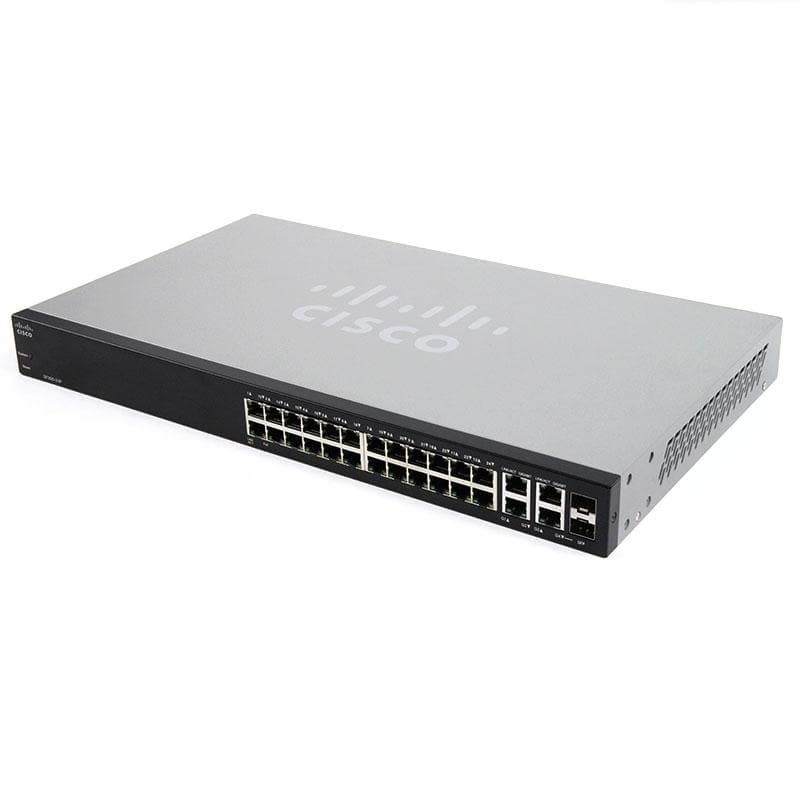

Cisco SRW2024 24-Port Gigabit Switch
The Cisco SRW2024 24-Port Gigabit Switch is a managed Ethernet switch designed for small to medium-sized businesses. It provides 24 Gigabit Ethernet ports, offering high-speed connectivity and robust network management features. With advanced capabilities like VLAN support, QoS, and security features, this switch helps ensure reliable, efficient, and scalable networking for business environments.
Features
- Auto MDI-MDI-X supports cable detection on all 10/100/1000 copper ports
- Provides flow control mechanism to ensure zero packet loss - uses back pressure for half-duplex operations
and IEEE802.3x for full duplex operation - Provides Store and Forward switching mechanisms
- Provides non-blocking switching performance
- Provides Multi-casting, Broadcasting and Flooding Control
- Support for strict priority and weighted round-robin (WRR) CoS policies
- Supports 802.1q tagged based VLAN for support of up to 64 VLANs
- Supports up to 8 trunking groups
- Load sharing among trunk ports based on MAC address
- Port Mirroring to monitor the traffic of Mirrored ports
- ACL to limit the interface and IP domain to manage the switch
- Web based configurations makes installation and setup easy
Requirements
- Cat5 Ethernet Network Cable
- TCI/IP protocol installed on each computer within the network
- Network Adapter installed in each computer
- Network Operating System (e.g. Windows, Linux, MacOS X)
