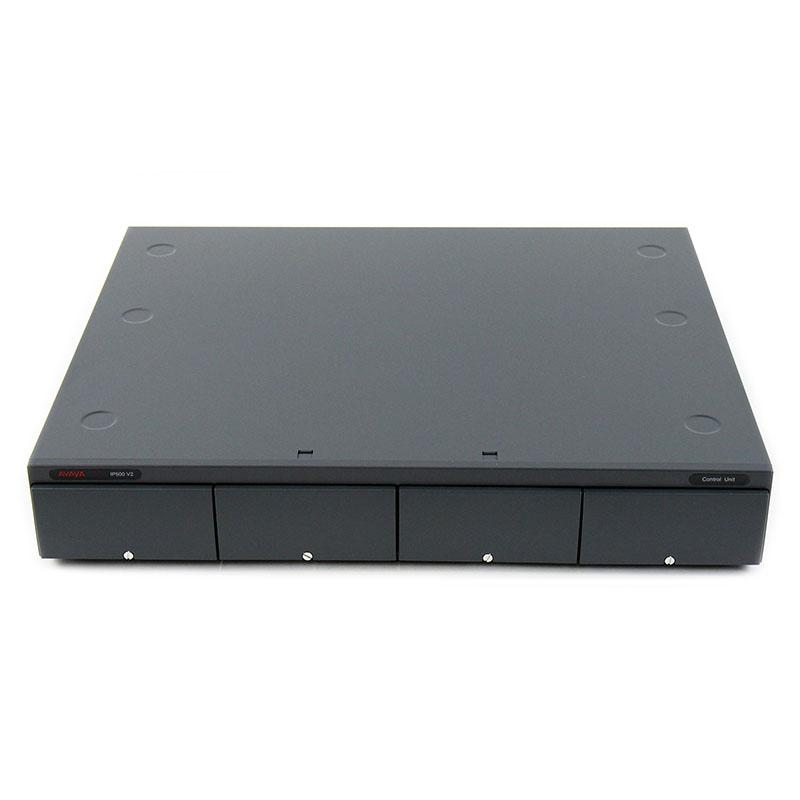

Avaya IP500 V2 Control Unit (700476005)
The Avaya IP500 V2 Control Unit supports IP Office release 6.0 or higher, IPO Basic Edition, Essential Edition, Advance Edition, Preferred Edition, Partner, and Norstar Edition. This is the newest control unit for operating the Avaya IP Office system.
- Four base card slots - Digital station, analog phones, VCM, expansion, ETR, and combination base cards are supported
- Trunk cards - IP500 trunk daughter cards connected to IP500 base cards are supported as well as IP400 trunk cards using the Legacy Card Carrier
- Two SD card slots - System SD card required
- Voicemail channels - Up to 30 channels for Voicemail PRO/TAPI WAV connection sessions
- Eight Expansion Port - Compatible with Digital Station 16/30, Phone 8/16/30, So8, WAN3, and Analog Trunk 16.
- Up to 12 expansion modules - Eight integrated expansion ports, Four additional external expansions modules can be added using a 4-port expansion base card
- Two LAN ports - Full duplex 10/100 Mbps
- Additional ports - Music on-hold, DTE port, external relay switch for door entry controls, integral WAN port
- Power cord included
- Includes Atlas 1-Year Warranty with Extended Warranty options available!
- Avaya IP500 V2 Control Unit with Power Cord
