IP500 Trunk Interface Cards

Avaya IP500 ATM4 V1 Universal Analog Trunk Daughter Card (700417405)

  • Like New: $29.88
Availability: In Stock

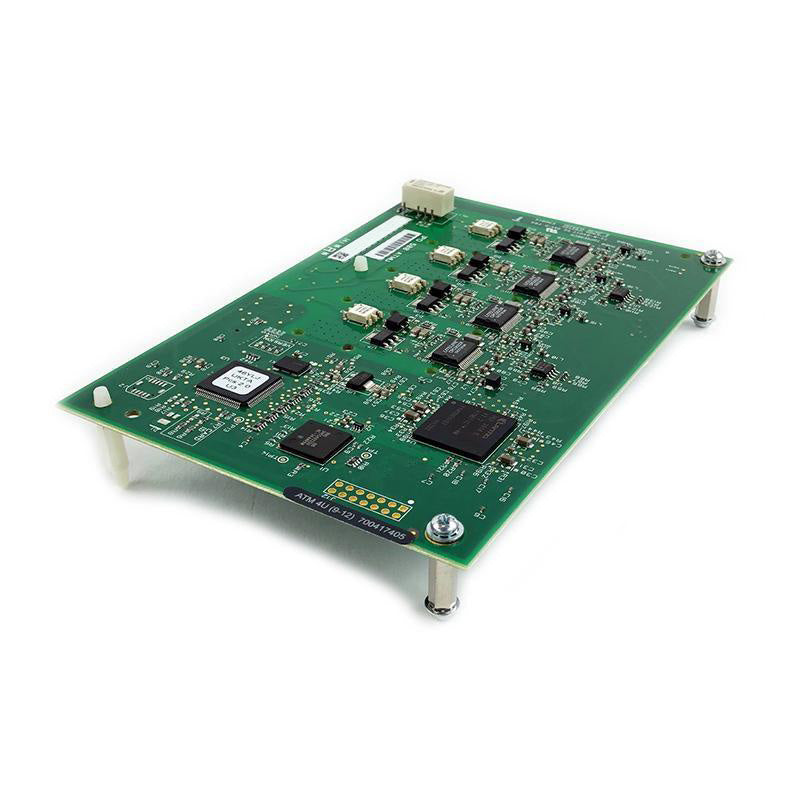

Avaya IP500 Analog Trunk Card 4 Daughter Card (700417405)

The Avaya IP500 Analog Trunk Card 4 V1 provides 4 additional analog trunk ports on your Avaya IP Office system.


  • Connects to IP500 base card - When connected to IP500 base card, it provides 4 loop-start analog trunk ports
  • Also provides DTMF, caller ID (ICLID), busy tone detection
  • Adjustable echo cancellation - Selectable to Off, 8, 16, 32, 64, and 128 milliseconds
  • Power Failure Transfer - When fitted to an IP500 analog phone base card. During power failure, the first extension port (port 1) is connected to the first analog trunk (port 9)
  • Maximum - 4 per IP500 control unit
  • Includes Atlas 1-Year Warranty with Extended Warranty options available!


  • Only compatible with IP Office 8.1.63 (Feature Pack 1) or higher
  • Requires an IP500 Digital Station 8, Analog Phone 2, Analog Phone 8, ETR 6, TCM 8, VCM 32, or VCM 64 base card with empty daughter card slot
