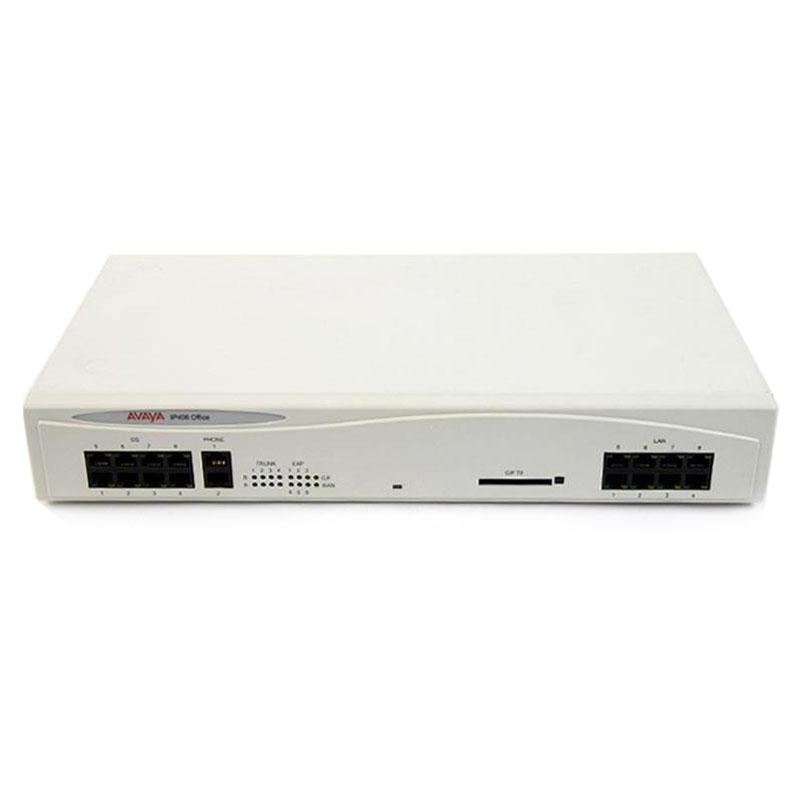

Avaya IP406 V2 Control Unit (700359946)

Avaya IP406 V2 Control Unit (700359946)

The IP406 V2 Control Unit is equipped with eight LAN ports that are full-duplex 10/100Mbps, auto-sensing, and auto MDI/MDIX. There are also two internal trunk module slots, one VCM expansion slot, and six expansion ports. Eight digital station ports as well as two analog ports are supported by the control unit. This control unit requires PCS 08 or higher.

Features

• LAN ports: 8
• Digital station ports: 8
• Internal trunk module slots: 2
• Analog station port: 2
• VCM expansion slot: 1
• Expansion ports: 6
• Compact flash slots: 1
• Additional port: Music-on-hold, DTE port, external relay switch, and intergral WAN port
• Up to 190 extensions
• Can be upgraded to IP Office release 3.2 or lower
• Data channels: 40 (20 which are usable for Voicemail Pro/TAPI WAV connection
• Includes Atlas 1-Year Warranty with Extended Warranty options available!

Compatibility

• Digital Station Ports - 2400, 4400, 5400, and 6400 series digital telephones. Also compatible with 3810 and TransTalk 9040 wireless.
• Internal Trunk Module Slots - PRI 24 T1, Quad BRI, and Analog Trunk Module (ATM4)
• Internal Trunk Module Slots - VCM 5/10/20 and VCM 4/8/16 (Max 20 channels)
• Expansion Ports - Digital Station 16/30, Phone 8/16/30, So8, WAN3, and Analog Trunk 16
