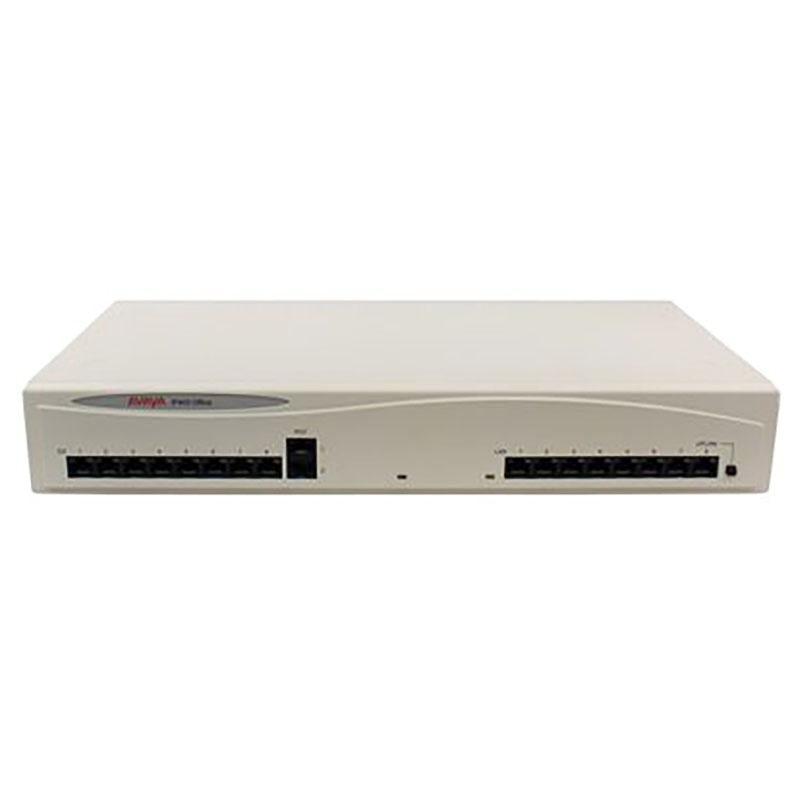

Avaya IP403 Control Unit (700210610, 700350390)
The Avaya IP403 Control Unit comes equipped with 8 LAN ports, 8 Digital Station ports, 2 Analog Station ports, 2 Internal Module slots, 1 VCM expansion slot and 3 expansion ports. There are additional ports for connecting Music on Hold, DTE port, and external relay switch for door entry controls and an integral WAN port. With the Avaya IP403 you have the capability of having up to 100 extensions and 20 data channels.
- 8 LAN ports
- 8 DS ports
- 2 analog station ports
- 2 internal trunk module slots
- 1 VCM expansion slot
- 3 expansion ports
- Music on Hold support
- DTE port
- External relay switch for door entry controls
- Integral WAN port
- Up to 100 extensions
- 20 Data channels
- Includes Atlas 1-Year Warranty with Extended Warranty options available!
- Digital Station Ports - Compatible with 2400, 4400, 5400, and 6400 series digital telephones.
- Analog Station Ports - Used for connection of analog telephones and devices.
- Internal Trunk Module Slots - Compatible with PRI 24 T1, Quad BRI, and Analog Trunk Module (ATM4)
- VCM Expansion Slot - Compatible with VCM 5/10/20 and VCM 4/8/16.
- Expansion Ports - Compatible with Digital Station 16/30, Phone 8/16/30,So8, WAN3, and Analog Trunk 16
