Aspire Station Cards

NEC Aspire IP1NA-8SLIDB-A1 8-Port Analog Daughter Board (0891018)

  • Like New: $128.88
Availability: In Stock

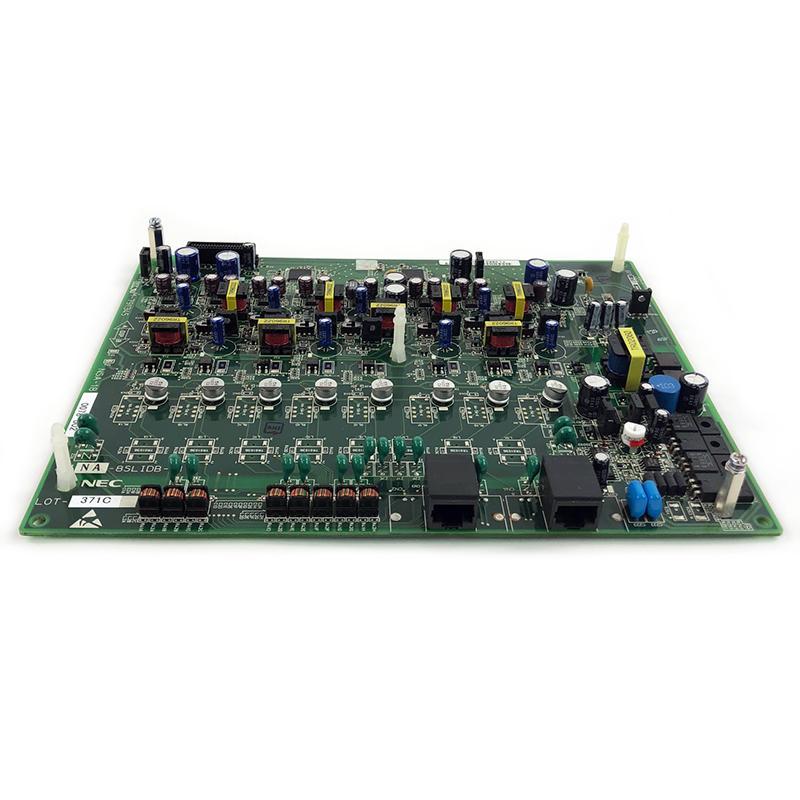

NEC Aspire IP1NA-8SLIDB-A1 8-Port Analog Daughter Board (0891018)

The NEC Aspire 8SLIDB daughter board provides 8 analog extension ports (used for on-premise analog telephones, fax machines, and analog modems). The 8SLIDB is not rated for OPX use. It is recommended that a 4/8DIOPU PCB be used instead (it supports the analog DID and single line telephone interface functions, such as Off-Premise Extensions).

Additionally, it includes 8 SW1 switches which provide constant current type battery feeding (set to either 20mA or 35mA), a connector for 8SLIU PCB, Ring Generator, and Message Wait Lamping Ability. When connecting a fax machine or analog modem, make sure to set Program 15-03-03 to "1" (special terminal) to avoid communication problems. Any cabling to the ESIU PCB must be within the building - no outside cabling is permitted.


  • 8 Analog Extension Ports
  • 8 SW1 Switches
  • 8SLIU PCB Connector
  • Ring Generator and Message Wait Lamping Ability
  • Includes Atlas 1-Year Warranty with Extended Warranty options available!
